170*670 Plate Aerator EPDM Silicone Fine Bubble Air Diffuser For
Water Treatment
Product Description

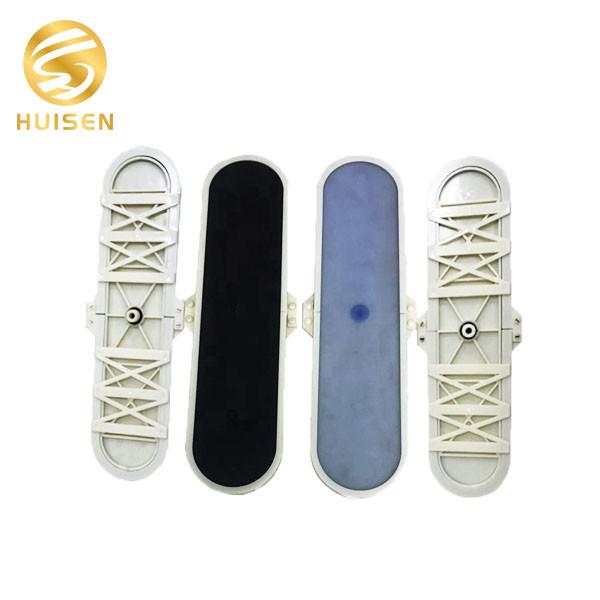

The support plate of the plate aerator is made of ABS engineering
plastics, the membrane can be EPDM or silicone, and the membrane is
laid on the support part, membrane is pressed once to form, which
prevent the problem of degumming caused by secondary pasting.
Its unique structure also makes the aeration system can maintain a
constant oxygen transfer rate in a wide range of working gas
volume.
The aerator can be used not only in intermittent operation system,
but also in continuous aeration system.
It has the characteristics of high oxygen utilization rate,
reliable performance, effective prevention of sewage backflow, long
service life, etc.
Product Advantage
1. Using good material, 100% virgin ABS and EPDM or silicone material,
have high pressure resistance and impact resistance;
2. High oxygen utilization rate, reliable performance and effective
prevention of sewage backflow;
3. Using suitable materials, adopting advanced equipment &
manufacturing process, which makes it reach the precision level and
beautiful ;
4. Directly supplied by manufacturer, can be customized according to the requirements of customers,
provide perfect service.
Product Parameter
| Item | Plate Aerator |
| Size | 170*670mm |
| Design ventilation | 8m3/h |
| Service area | 1.25-2.5m2h |
| Oxygen utilization rate | >35% |
| Oxygenation capacity | >1.0KgO2/h |
| Theoretical dynamic efficiency | >7.5kg/kw.h |
| Depressurization at typical flow | <3.5kPa |
| Bubble size | 1-3mm |
Product Application
It is applied to domestic sewage and industrial treatment. It is
used in different stages of aerobic tank, anoxic tank,
sedimentation tank and other sewage treatment processes. It is not
limited by the shape of the tank, and can be used in various types
of tanks.
