65mm Silicone Membrane Fine Bubble Tube Diffuser For Waste Water
Treatment
Product Description

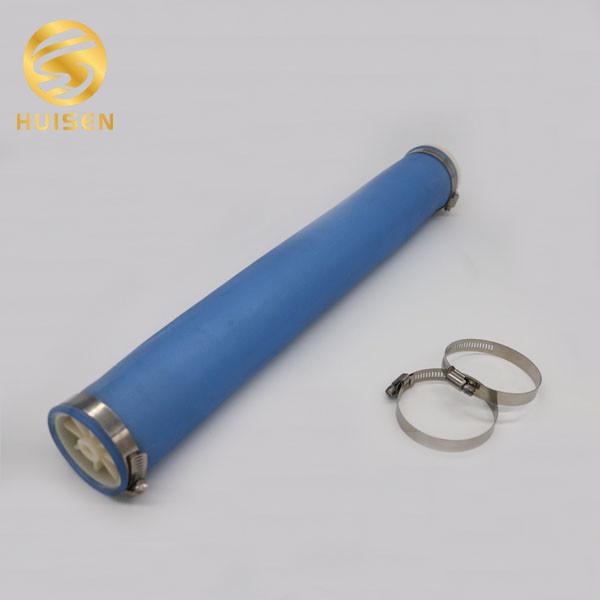

Diameter 65mm silicone membrane fine bubble tube diffuser can be
connected on one side or in pairs to different rectangular and
round tubes (ABS material) with the appropriate adapter. The
membranes are manufactured with premium quality silicone material
and are available with fine or coarse-bubble perforation. The
support tubes (ABS or PVC material) can be reused when membranes
are replaced.
Product Parameter
| Item | φ65*500mm | φ65*750mm | φ65*1000mm |
| Spec. φ*L mm | 65*500mm | 65*750mm | 65*1000mm |
| Oxygen transfer efficiency | Water Depth 5m | 23-32% |
| Water Depth 6m | 34-39.5% |
| Water Depth 7m | 31-45% |
| Ventilatory volume (m3/h) | 1.7-6.8 | 3.4-13.6 | 3.4-17 |
| Service area | 0.82-1.26m2 | 0.98-2.11m2 | 0.98-2.35m2 |
| Number of holes | 8080 | 10300 | 13880 |
| Bubble diameter | 0.8-2.0mm |
| Pressure loss | 25-42cm | 25-41.5cm | 25-40cm |
| Oxygenation capacity | Micropore: 7.5kgO2/kw.h(under 5m of water); Pore:3.5-4.8kgO2/kw.h(under 5m of water) |
| Extension ability | >600% |
| Tension strength | >13.8*103kpa |
Product Feature
1. Digital control knife
Membrane has large numbers of self-closing holes with using
mechanical punching technology. The holes can automatically open
and close when the oxygen operation stopped, so it can avoid
blocking holes;When aeration tank stops, sewage mixing will not be
poured back, also can reduce maintenance.
2. High opening rate
Membrane is installed conveniently and uniformly arrangement, so
that air can arrange the whole membrane evenly, and the opening
rate will increase. Thus the aeration capacity and service area
will increase, and aeration resistance is reduced when the aerator
starts.
3. Environmental material
Use engineering plastics ABS material, simple structure, reliable
performance, hollow water filling, greatly reducing the buoyancy of
the aeration system in the water.
Product Application
It is applied to domestic sewage and industrial treatment. Here's
some of our projects for your reference:
Product Package
Master carton size is 102x38x31cm.
If the size is 65*1000mm, 20pcs per carton;
If the size is 65*500mm, 40pcs per carton.
