Disc Fine Bubble Tube Diffusers Accessories To Connect Pipe And Aerator

Fine Bubble Tube And Disc Diffusers' Accessories To Connect Pipe And Aerator

Product Description

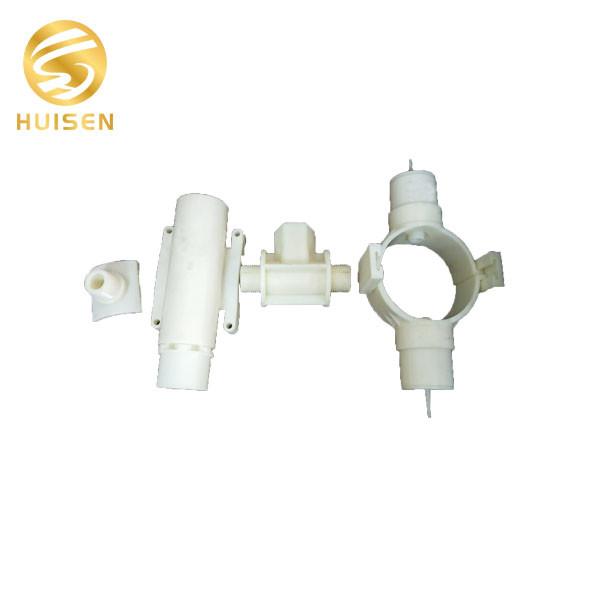

Huisen has four types ABS connectors for tube bubble air diffuser, liftable connector, saddle clamp, integral connector and insert type ring connector.

Tube air diffuser can be screw into the liftable connector's left and right side, and the top side is connect to branch pipe.

Saddle clamp uses glue to stick into branch pipe. Then use electric drill to drill a hole. And the size of hole is determined by where you use and branch pipe size, you can ask us when you want to use this connector.

If you want to choose integral connector, you need to tell us before order, because this connector connect two tube aerations directly during inproduction, and you also need to drill a hole in the top of branch pipe and use a clamp to fix connector with branch pipe.

The usage method of insert connector is drilling holes on both sides of branch pipe, then insert the connector into the branch pipe, and use inserting accessories to fix.

Product Specification

Liftable connector:

Item	Tube diffuser connector accessories
Size	13x11cm
Connector's right and left side size	33mm +/- 0.5mm
Connector's top side size	31mm +/- 0.5mm

Integral connector:

Item	Tube diffuser connector accessories
Size	18x10.5cm

Insert type ring connector:

Item	Tube diffuser connector accessories
Size	32x14cm

Application

All of them is used for connect tube diffuser into branch pipe.

Product Package
