Fine Bubble 200mm Disc Diffuser Aerator For Fish Pond

Ask Lasest Price
Brand Name :	HUISEN
Price :	$2.88
Payment Terms :	T/T, Western Union
Supply Ability :	100pcs per day
Delivery Time :	According to the quantity

Add to Cart

Product Details
Company Profile

Fine Bubble 200mm Disc Diffuser Aerator For Fish Pond

Product Description

Model	HSCD200	HSCD260	HSCD300
Aerator Type	Crown Type
Size	8 inch	10 inch	12 inch
MOC	EPDM membrane, ABS carrier plate
Connector	3/4"NPT male thread
Bubble Size	1-2mm
Flow Range(m³/h)	1-6	1-8	1-12
Design Flow(m³/h)	1.5-3	3-5	5-6
STOE	≥38%(6m submerged)
STOR(kg O2/h)	≥0.31	≥0.42	≥0.75
SAE	≥8.9kg O2/kw.h
Headloss	2000-4500pa
Service Aera(m2)	0.3-0.654	0.4-0.8	0.5-1.2
Service Life	>5 years

The crown type aerator is designed to slightly protruding arch surface, and ABS engineering plastics are used as the main body.
The membrane has a special imported rubber with anti-corrosion surface, which is made by special processing. The membrane hole is opened by the CNC knives openings imported from Germany, which guarantee the quality and precision of the hole.

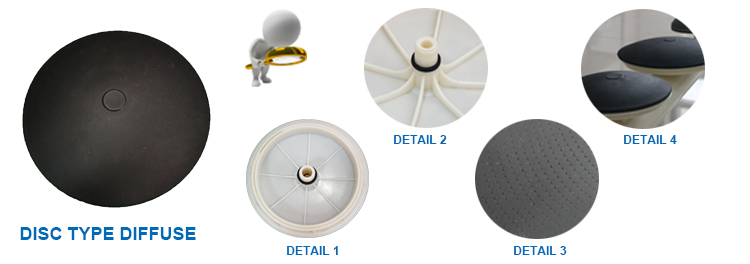

Detailed Images

Fine Bubble 200mm Disc Diffuser Aerator For Fish Pond

Product Features

Structure for preventing reflux

When air closed, the center of membrane falls on the orifice of membrane tray, and the non-perforated area can cover the air release orifice, similar to a check valve, to prevent liquid from flowing back into the aeration system. In addition, according to the characteristics of sewage treatment process, an independent check valve has been developed, which can be used in combination with diaphragm check.

Special punching technology

Over 5,500 perforations in Dn200, over 6,300 perforations in Dn215, over 9,000 perforations in Dn260, over 10,000 perforations in Dn330. Air deflector diameter is 0.5cm, the contact space with membrane is 0.15cm, which make the opening rate of membrane can reach 99.9%. Also improve oxygenation capacity, oxygen utilization rate and reduce ventilation resistance.

High pressure injection molding

The professional machine is shaped by many processes, refined and cast, controlling every process and creating the perfect product.

Compact structure Uniform gas distribution

A folded-concave structure is better in sealing performance, which solves the disadvantage of easy to fall off when the air flow is too large. Meanwhile, the chassis support add a guide ring and six air guide grooves. Compared with other existing aeration devices, under the same operating load, ours require aeration volume is greatly reduced, and the aeration is evenly distributed throughout the tank.

Application

1.Aeration of fishpond and other applications;
2. Aeration of deep aeration basin;
3. Aeration for excreta and animal waste water treatment plant;
4. Aeration for denitrification/dephosphorization aerobic processes;
5. Aeration for high concentration waste water aeration basin,and aeration for regulating pond of waste water treatment plant;
6. Aeration for SBR, MBBR reaction basin,contact oxidation pond;activated sludge aeration basin in sewage disposal plant.
