350mm 13" Silicone Membrane Aeration Disc For Pond Aeration System

Product Categories

JiangSu HuiSen Environmental Protection Technology Co., Ltd.

Contact Now

350mm 13" Silicone Membrane Aeration Disc For Pond Aeration System

Ask Lasest Price
Brand Name :	HUISEN
Price :	$9.98
Payment Terms :	T/T, Western Union
Delivery Time :	According to the quantity

Add to Cart

Product Details
Company Profile

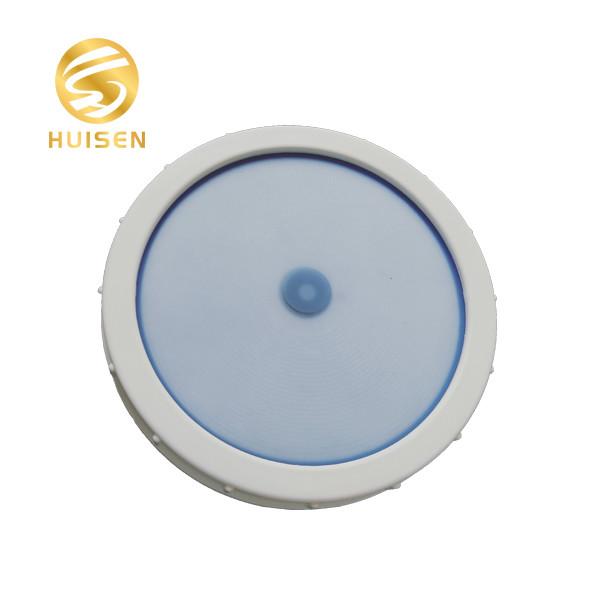

350mm 13" Silicone Membrane Aeration Disc For Pond Aeration System

Fine bubble disc diffused aeration system, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Fine bubble diffusers produce a plethora of very small air bubbles which rise slowly from the floor of a wastewater treatment plant or sewage treatment plant aeration tank and provide substantial and efficient mass transfer of oxygen to the water. The oxygen, combined with the food source, sewage, allows the bacteria to produce enzymes which help break down the waste so that it can settle in the secondary clarifiers or be filtered by membranes.

1. Membrane is imported material (Silicone) ;

2. Low-resistance membrane opens easily ;

3. Large aeration service area;

4. The sludge comes off smoothly;

5. The aeration diaphragm has sufficient extension;

6. Good sealing performance around mechanized assembly;

7. Strong overall strength and long service life.

Model	HSPD215	HSPD260	HSPD350
Type	Plate Type
Size	8 inch	10 inch	13 inch
MOC	EPDM membrane
MOC		ABS carrier plate
Connector	3/4"NPT male thread
Bubble Size	1-2mm
Flow Range(m³/h)	1-6	1-8	1-15
Design Flow(m³/h)	1.5-2.5	3-4	7-8
STOE	≥38%(6m submerged)
STOR(kg O2/h)	≥0.31	≥0.42	≥0.90
SAE	≥8.9kg O2/kw.h
Headloss	2000-4500pa
Service Aera(m2)	0.2-0.64	0.25-1.0	0.5-0.75
Service Life	>2 years

350mm 13" Silicone Membrane Aeration Disc For Pond Aeration System
